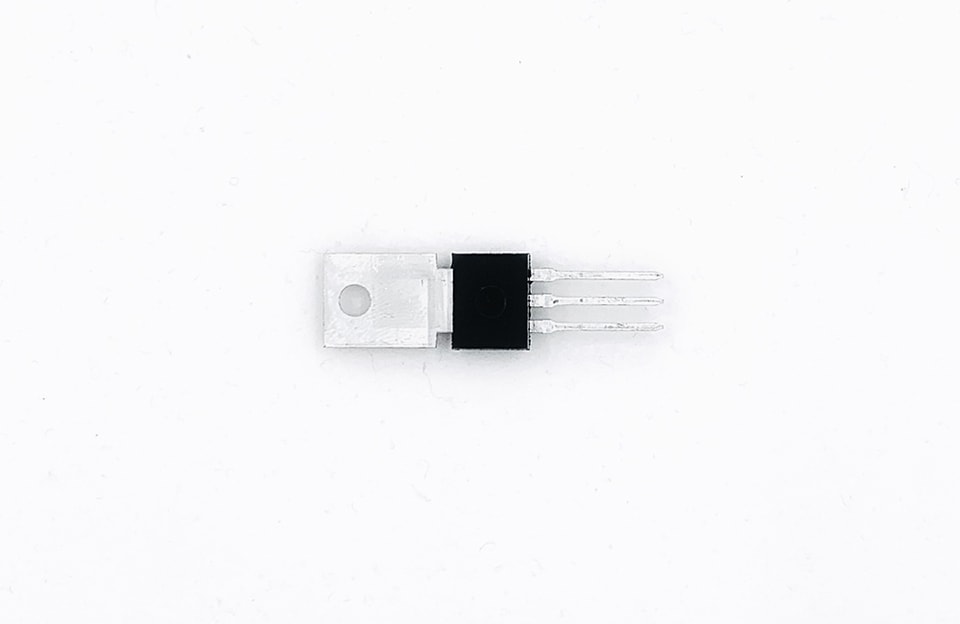

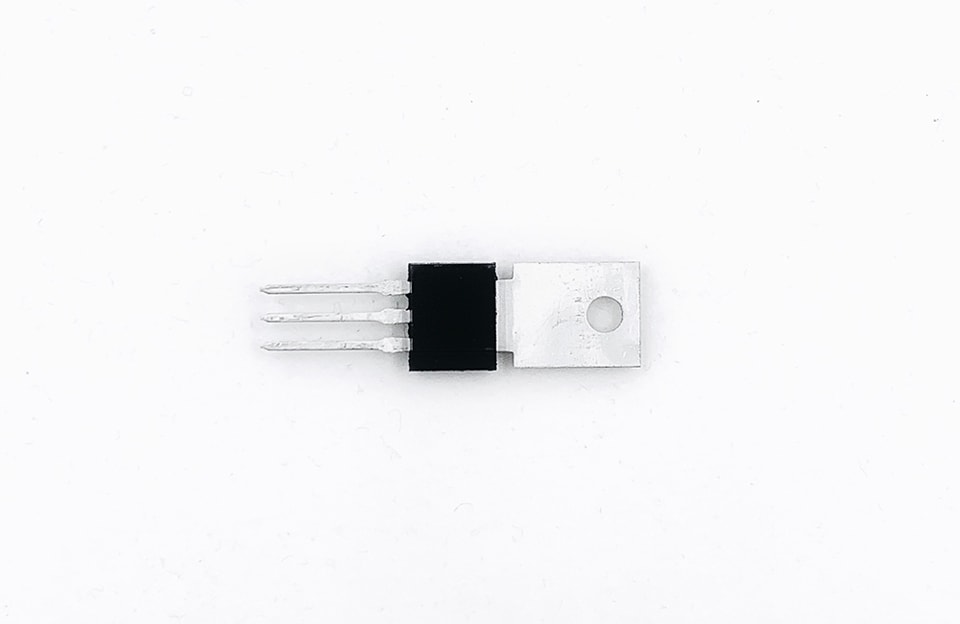

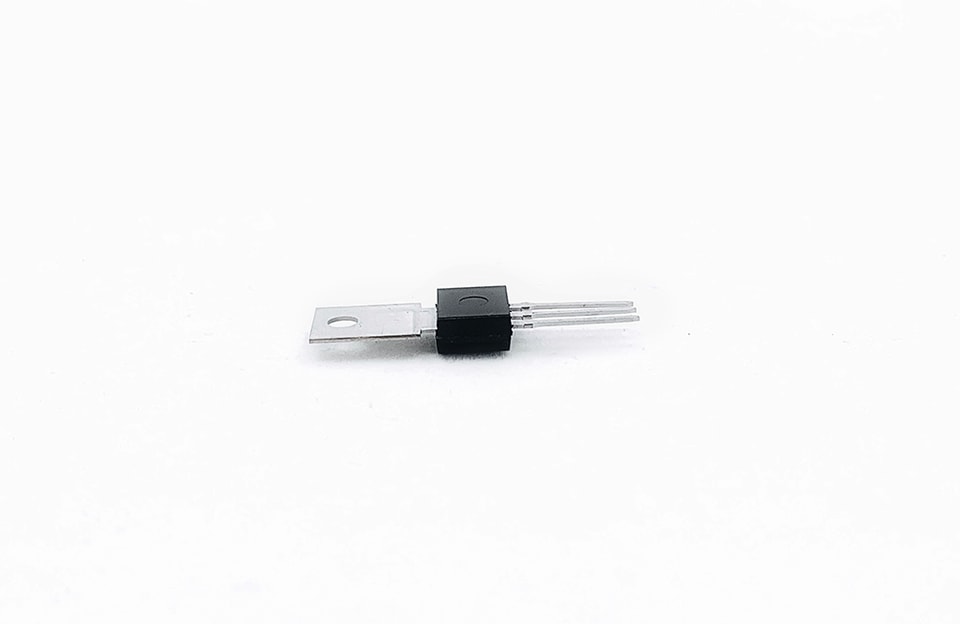

YZPST-X0405 (con disipador térmico)
Consejo: incluya el número de pieza, el voltaje/corriente objetivo y el entorno de aplicación.
Descargas y archivos técnicos
Gracias a sus niveles de disparo muy sensibles, la serie X0405 SCR es adecuada para todas las aplicaciones en las que la corriente de compuerta disponible es limitada, como los interruptores diferenciales por falla a tierra, la protección crowbar contra sobretensión en fuentes de alimentación de baja potencia y los circuitos de encendido capacitivos.
Símbolo | Valor | Unidad |
IT(RMS) | 4.0 | A |
VDRM VRRM | 600 | V |
IGT | 200 | µA |
Parámetro | Símbolo | Valor | Unidad |
Rango de temperatura de unión de almacenamiento | Tstg | -40 ~150 | ℃ |
Rango de temperatura de unión de funcionamiento | Tj | -40~125 | ℃ |
Tensión repetitiva de bloqueo en estado apagado de pico (T =25℃) | VDRM | 600 | V |
Tensión repetitiva inversa de pico (T =25℃) | VRRM | 600 | V |
Tensión transitoria no repetitiva de pico en estado bloqueado | VDSM | VDRM +100 | V |
Tensión inversa de pico no repetitiva | VRSM | VRRM +100 | V |
Corriente eficaz en estado de conducción (T =60℃) | IT(RMS) | 4.0 | A |
Corriente de pico transitoria no repetitiva en estado de conducción (ángulo de conducción de 180°, F=50Hz) | ITSM | 30 | A |
Corriente media en estado de conducción (ángulo de conducción de 180°) | IT(AV) | 2.5 | A |
Valor de I2t para fusión (tp=10ms) | I2t | 4.5 | A2S |
Velocidad crítica de aumento de la corriente en estado de conducción (I =2×IGT, tr ≤ 100 ns) | dI/dt | 50 | A/μS |
Corriente máxima de puerta | IGM | 1.2 | A |
Disipación media de potencia de puerta | PG(AV) | 0.2 | W |
Símbolo | Condición de prueba | Valor | Unidad | |
IGT | V =12V R =140Ω | MÁX. | 200 | µA |
VGT | MÁX. | 0.8 | V | |
VGD | VD=VDRM Tj=125℃ R=1KΩ | MÍN. | 0.1 | V |
IL | IG=1.2IGT | MÁX. | 6 | mA |
IH | IT=50mA | MÁX. | 5 | mA |
dV/dt | VD=2/3VDRM puerta abierta Tj=125℃ | MÍN. | 15 | V/μs |
CARACTERÍSTICAS ESTÁTICAS
Símbolo | Parámetro | Valor (MÁX.) | Unidad | |
VTM | ITM =8.0A tp=380μs | Tj =25℃ | 1.8 | V |
IDRM | VD=VDRM VR=VRRM | Tj =25℃ | 5 | μA |
IRRM | Tj =125℃ | 1 | mA | |
Resistencias térmicas
| Símbolo | Parámetro | Valor (MÁX.) | Unidad |
Rth(j-a) | unión a ambiente | 60 | ℃/W |
Rth(j-t) | Unión a pestaña (CC) | 20 |
Esquema de información de pedido
YZPST puede proporcionar la siguiente lista de equivalentes de SCR y triac.
2P4M | BT2588 | Q6006 | SCF6C60 | TS820 |
2P6M | BY169 | Q8006 | S6012 | TS420 |
25TTS16 | BT169 | Q6008 | S8012 | TYN612 |
40TPS16 | BT151S | Q8008 | S8016 | TYN616 |
70TPS16 | BT148W | Q6010 | SCF25C60 | TYN816 |
BT148S | Q8010 | S6025 | TYN620 | |
CR08AS | BT151 | Q6016 | S8025 | TYN820 |
C106 | BT152 | Q8016 | SK025 | TYN1025 |
CS30 | BTW69 | Q6025 | S6035 | TYN1225 |
CS45 | BT131 | Q8025 | S8035 | TYN630 |
CS60-16i01 | BT134 | QK025 | SK035 | TYN830 |
BT136 | Q6040 | S6040 | TYN640 | |
MCR100-6 | BCR2PM | Q8040 | S8040 | TYN840 |
MCR100-8 | BTA01 | QK040 | S6055 | T405 |
MCR706 | BTB04 | S8055 | T410 | |
MCR72-6/8 | BTA06 | SK055 | T435 | |
MCR22 | BTB06 | STN1A60 | T805 | |
MAC97A6 | BTA08 | STN1A80 | T810 | |
MAC97A8 | BTB08 | STF4A60 | T835 | |
BT137 | STF6A60 | TMG8C60 | ||
FS0102MA | BTA10 | STF08 | TMF12C60 | |
BTB10 | STF12A60 | T1235 | ||
X0405 | BTA16 | TMG16C60 | ||
X0805 | BTB16 | TIC246 | ||
X0205 | BT139 | T1620 | ||
BTA216 | T1635 | |||
Z00607 | BTA20 | TMG20C60 | ||
Z0103 | BTB20 | T2535 | ||
Z0107 | BTA24 | TMG25CQ60 | ||
Z0405 | BTB24 | |||
Z0409 | BTA140 | |||
BTA26 | ||||
BTB26 | ||||
BTA41 | ||||
BTB41 |
