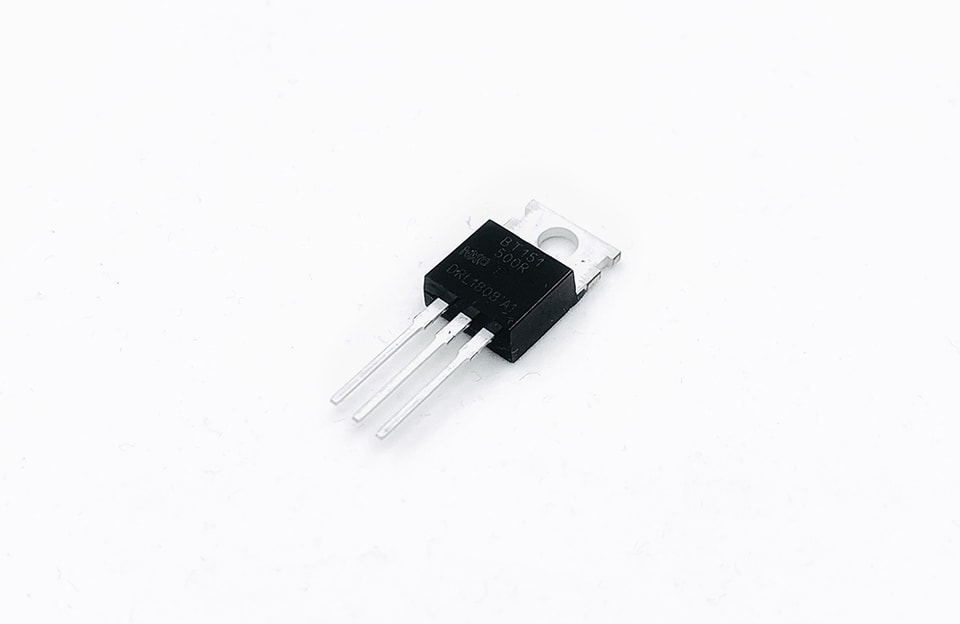

YZPST-BT151
Consejo: incluya el número de pieza, el voltaje/corriente objetivo y el entorno de aplicación.
Descargas y archivos técnicos
Característica principal (Tj=25℃)
Símbolo | Valor | Unidad |
IT(AV) | 7.5 | A |
VDRM / VRRM | ≥ 600 | V |
IGT | 1 a 20 | mA |
Símbolo | Parámetro | Valor | Unidad |
IT(RMS) | Corriente RMS en estado de conducción (ángulo de conducción de 180°) | 12 | A |
IT(AV) | Corriente media en estado de conducción (ángulo de conducción de 180°) | 7.5 | A |
ITSM | Pico no repetitivo de sobretensión en conducción Corriente (tp=10ms) | 100 | A |
I2t | (tp=10ms) | 50 | A2S |
IGM | Corriente máxima de compuerta (tp=20us) | 2 | A |
PGM | Potencia máxima de puerta | 5 | W |
PG(AV) | Potencia media de compuerta | 0.5 | W |
Tstg Tj | Temperatura de almacenamiento Temperatura de unión en funcionamiento | -40--+150 -40--+125 | ℃ |
Símbolo | Parámetro | Valor | Unidad |
Rth (j-c) | Unión a caja | 1.3 | K/W |
Rth (j-a) | Junción a ambiente | 60 | K/W |
Símbolo | Condiciones de prueba | Valor | Unidad | |||
Mín. | Tipo | Máx. | ||||
IGT | VD=6V, RL=100Ω | 1 | 5 | 20 | uA | |
VGT | VD=12V, RL=100Ω | ----- | 0.7 | 0.8 | V | |
VGD | VD=VDRM, RL=3.3KΩ Tj=110℃ | 0.2 | ----- | ----- | V | |
IH | IT=100mA puerta abierta | ----- | 9 | 20 | mA | |
dV/dt | VD=67%VDRM, puerta abierta, Tj=125℃ | 50 | 125 | ----- | v/μs | |
VTM | IT=16A,tp=380μs | ----- | ----- | 1.7 | V | |
IDRM IRRM | VD=VDRM VR=VRRM | Tj=25℃ | ----- | ----- | 20 | uA |
Tj=110℃ | ----- | ----- | 300 | uA | ||

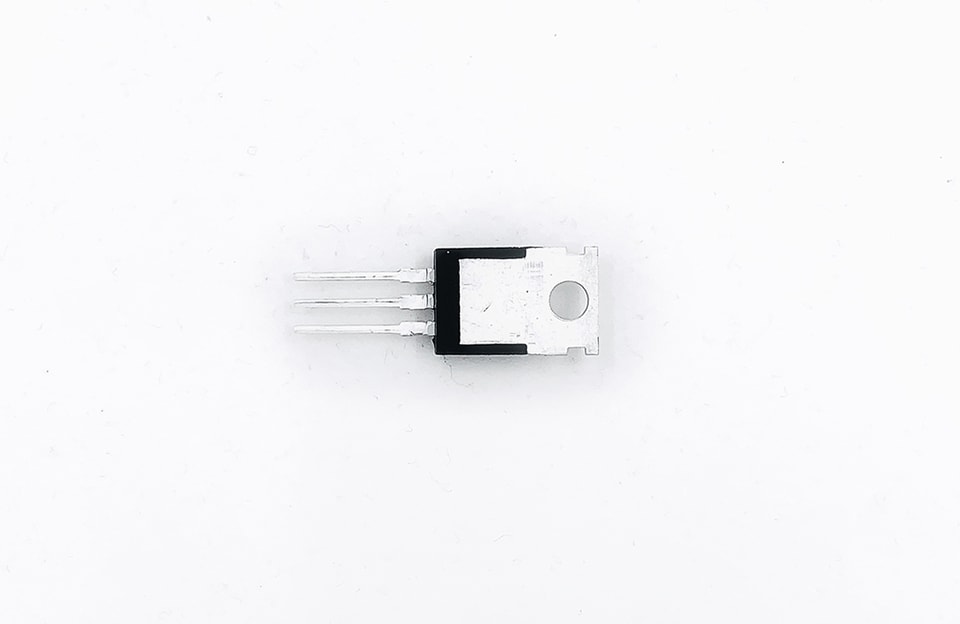

- Medida del encapsulado (TO-220E)
- Circuito eléctrico
- Circuito eléctrico
